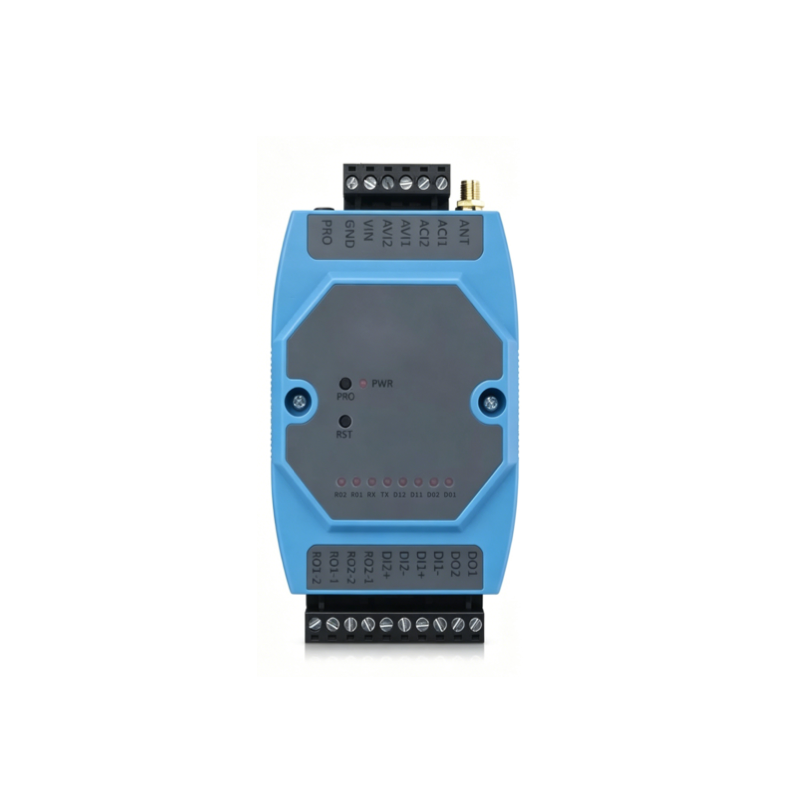

Ai-RC-52L

Product Description
Specifications:
Features:
  • LoRaWAN Class A & Class C modes
  • Optional Customized LoRa Protocol
  • Frequency Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/RU864/IN865/MA869
  • AT Commands to change parameters
  • Remotely configure parameters via LoRaWAN Downlink
  • Firmware upgradable via program port
Applications:
  • Smart buildings & home automation
  • Logistics and supply chain management
  • Smart metering
  • Smart agriculture
  • Smart cities
  • Smart factory
LoRa Spec:
  • Frequency Range: Band 1 (HF): 862 ~ 1020 MHz ; Band 2 (LF): 410 ~ 528 MHz
  • 168 dB maximum link budget.
  • +20 dBm - 100 mW constant RF output vs.
  • +14 dBm high-efficiency PA.
  • Programmable bit rate up to 300 kbps.
  • High sensitivity: down to -148 dBm.
  • Bullet-proof front end: IIP3 = -12.5 dBm.
  • Excellent blocking immunity.
  • Low RX current of 10.3 mA, 200 nA register retention.
  • Fully integrated synthesizer with a resolution of 61 Hz.
  • FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
  • Built-in bit synchronizer for clock recovery.
  • Preamble detection.
  • 127 dB Dynamic Range RSSI.
  • Automatic RF Sense and CAD with ultra-fast AFC.
  • Packet engine up to 256 bytes with CRC.
